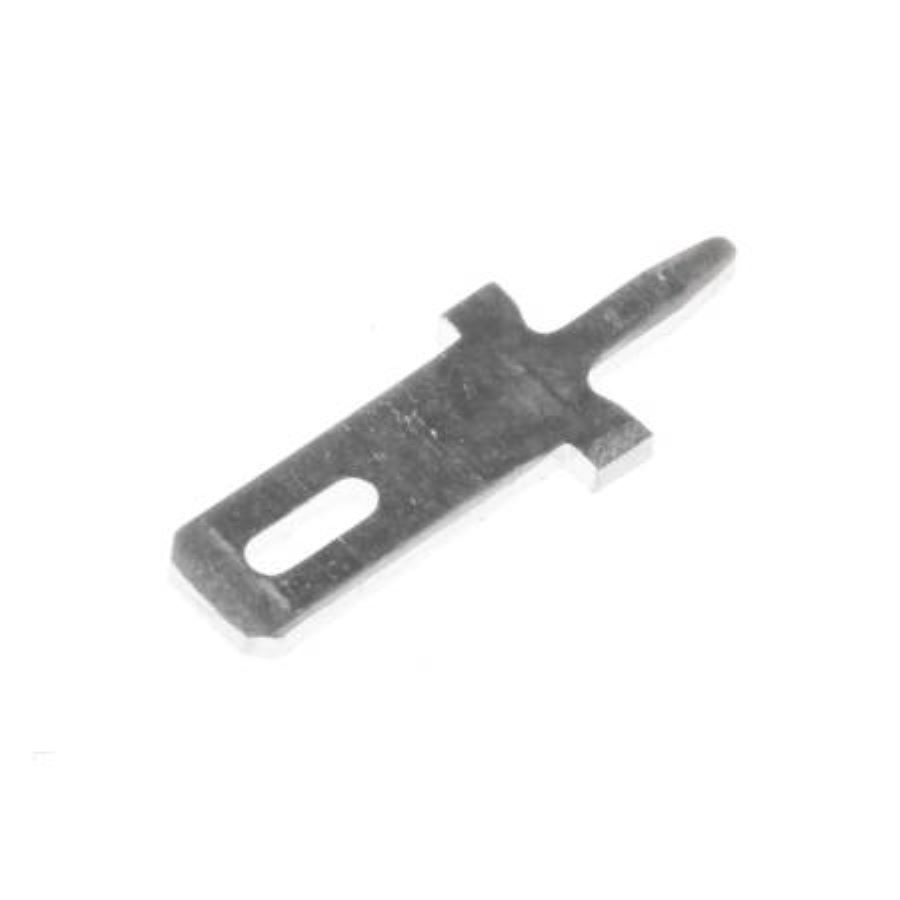

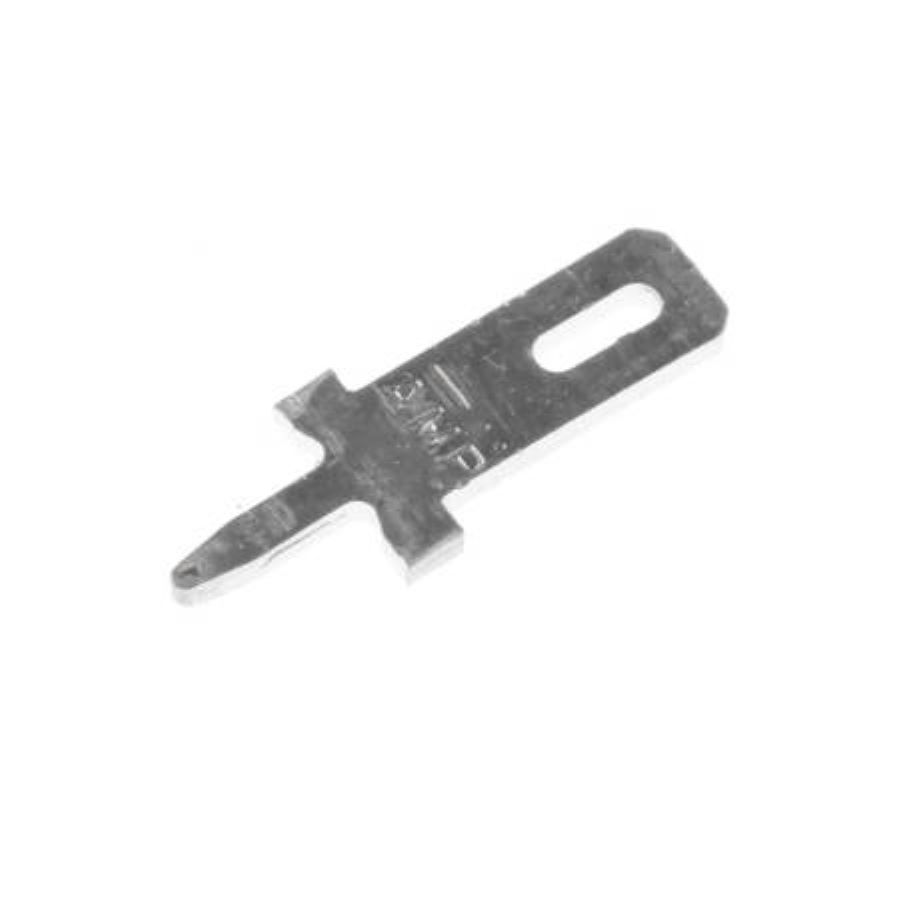

735427-2
Manufacturer:
TE Connectivity
Mfr.Part #:
735427-2
Datasheet:
Description:
Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 12.4 mm |
| Termination | Tab |
| Voltage Rating (AC) | 300 V |
| Height | 8.6 mm |
| Material | Brass |
| Packaging | Bulk |
| Depth | 4.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 2.794 mm |
| Terminal Material | Brass |
| Hole Diameter | 1.0922 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Tin |
| PCB Thickness | 2.3622 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 2.79 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 2.8 mm x 0.81 mm |
Stock: 2240
Distributors
pcbx
pcbxUnit Price$0.12288
Ext.Price$0.12288
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12288 | $0.12288 |
| 10 | $0.11023 | $1.10230 |
| 50 | $0.09888 | $4.94400 |
| 100 | $0.08655 | $8.65500 |
| 500 | $0.07576 | $37.88000 |
| 1000 | $0.07216 | $72.16000 |
| 3000 | $0.06873 | $206.19000 |
| 5000 | $0.06546 | $327.30000 |
